TVPS3-100LW 100A Two-Way Energy Meter(Without leakage)

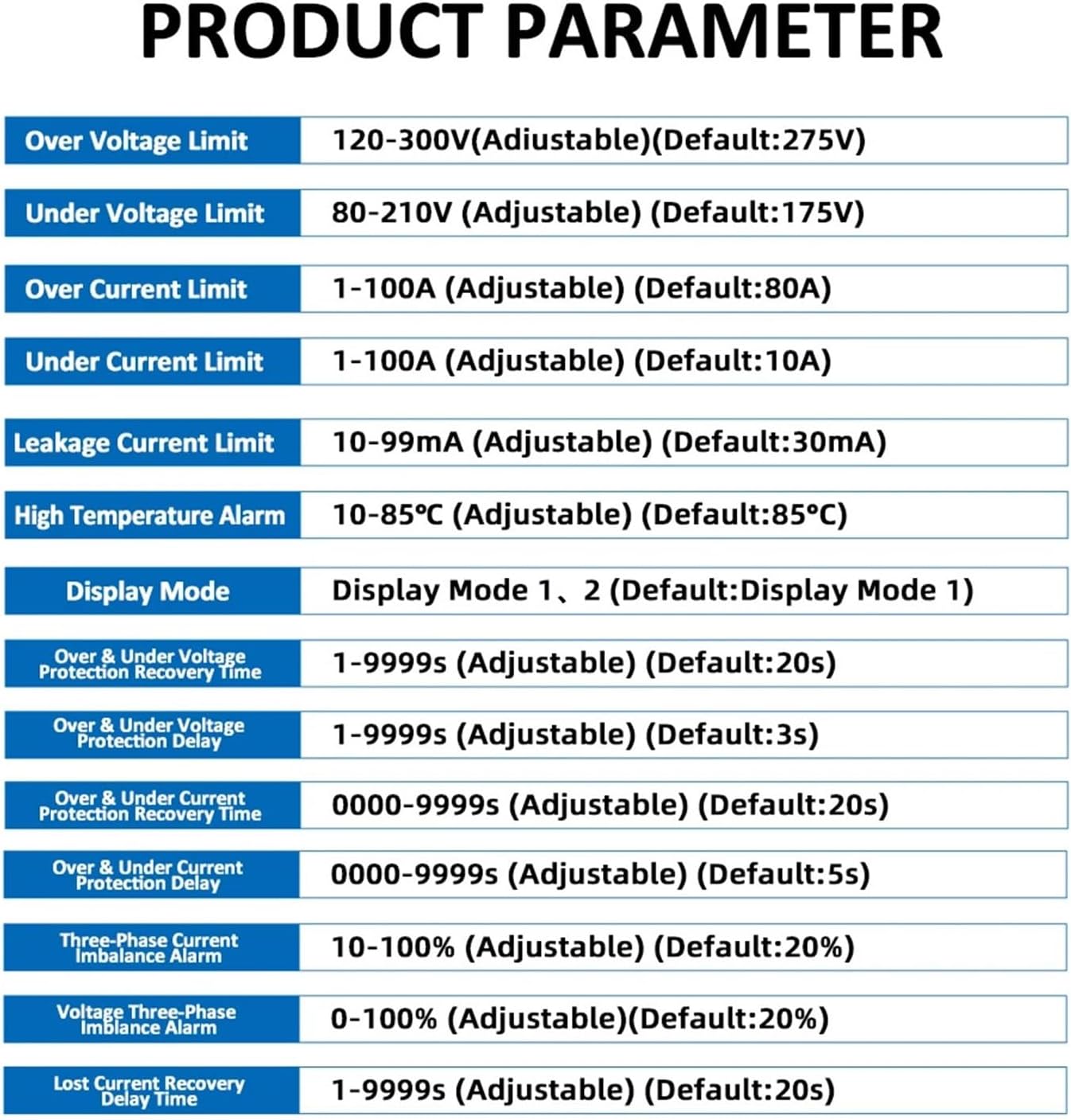

Meter SocketsRated voltage: 60-300V; Frequency: 50Hz/60HZNote: If your voltage is 110VAC, the protector will provide undervoltage protection the first time you use it.Please adjust the overvoltage (60-300V) and undervoltage (60-300V) settings according to your needs. Multifunctional instrumentTwo-way measurementTotal energy (kWh) (positive kWh + negative kWh)Voltage, current, active power, power factor, frequency, temperatureProtection functions:1. Overvoltage limit: 120-300V (adjustable) (default: 275V)2. Undervoltage limit: 80-210V (adjustable) (default: 175V)3. Overcurrent limit: 1-100A (adjustable) (default: 80A)4. Undercurrent limit: 1-100A (adjustable) (default 10A)5. Leakage current limit: 10-99mA (adjustable) (default: 30mA) (for use with a transformer)6. High temperature alarm: 10-85 (adjustable) (default: 85)7. Display Mode: Display Mode 1, 2 (Default: Display Mode 1)8. Overvoltage and undervoltage protection recovery time is adjustable from 19999 seconds (default 20 seconds).9. Overcurrent and undercurrent protection delay is adjustable from 00009999 seconds (default 5 seconds).10. Overcurrent and undercurrent protection recovery time is adjustable from 00009999 seconds (default 20 seconds).11. Undervoltage and overvoltage protection delay adjustable at 19999 seconds (default 3 seconds)12. Three-phase current imbalance alarm: 10-100% adjustable (default 20%)13. Three-phase voltage imbalance alarm: 0-100% adjustable (default 20%)14. Loss of power recovery delay time: Adjustable from 1 to 9999 seconds (default 20 seconds)15. Time threshold for power loss event: 1-999 seconds (adjustable) (default 10 seconds)16. Energy Consumption Reset: Off by default17. Factory reset: Off by default.Battery included: NoOperating temperature: -30~70Accuracy class: 1%Energy measurement range: 0-9999999.99kWhNumber of phases: Three-phaseModel: TVPS3-100LWMaximum operating current: 80A - 99ARated voltage: 380VPower supply: Alternating currentDisplay type: LCDDIY supplies: electrical appliances Place of origin: Mainland ChinaCertifications: CE, FCC, RoHS, KC

• Meter Sockets
