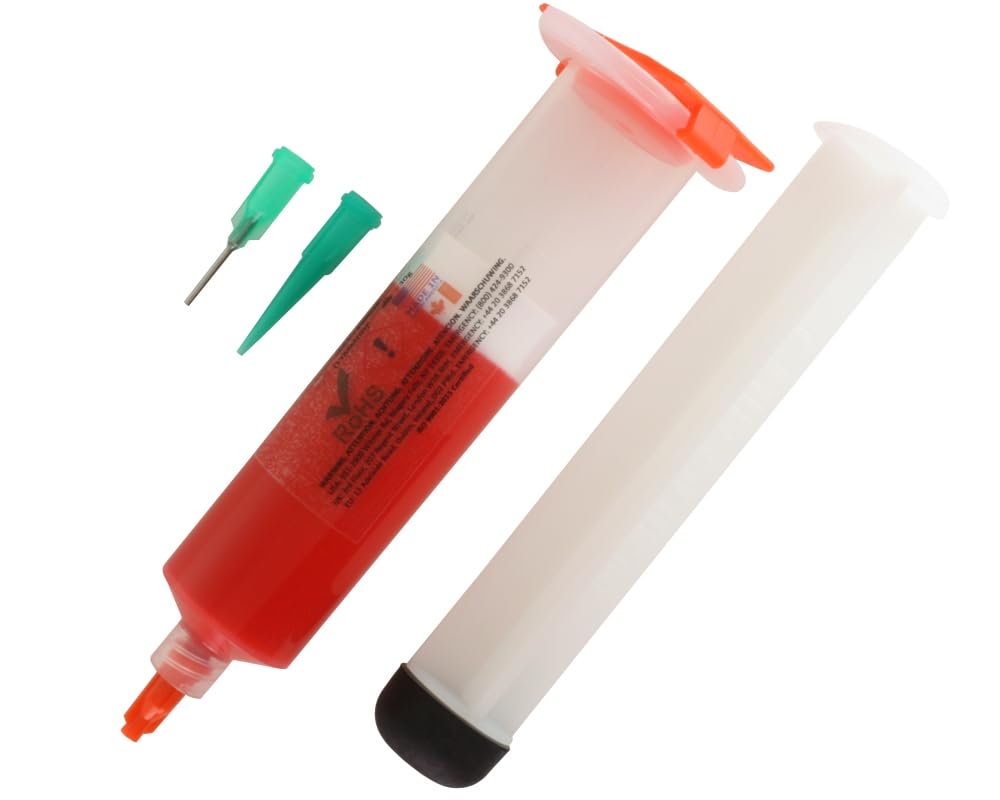

CHIP QUIK AD7-30S Thermoset Chip Bonding Epoxy (Red) 30g/30cc Syringe (Thermal (Heat) Cure Adhesive/Glue)
Product details
| Management number | 222101182 | Release Date | 2026/05/04 | List Price | US$13.18 | Model Number | 222101182 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: Heat curing epoxy chip bonding adhesive designed to bond surface mount chips and ICs to printed circuit boards (PCBs). Low Viscosity. Designed to be dot/line dispensed. Allows large/heavy surface mount components to be permanently bonded to a PCB during reflow, allowing two sided surface mount reflow without larger chips/ICs coming loose. Curing Time: 120-180 seconds at 190+ Celsius (374+ F). Recommended Curing Temperature: 190 to 260C (374 to 500F). Maximum Curing Temperature: 260C (500F). Designed to cure at leaded (Sn63/Pb37) and lead free (SAC305) reflow temperatures. Maximum recommended dot size: 10mm x 10mm x 1mm (100mm^3). Specifications (After Curing): Operating Temperature Range: -40 to 125C (-40 to 257F) (After Curing, After Reflow). Density: 1.4g/cc. Viscosity (Malcom @ 5 RPM, 25C): 44 Pa-s (44,000 mPa-s). Size: 30g/30cc syringe. Shelf Life: Refrigerated >24 months, unrefrigerated >24 months. Stencil Life: >12 hours @ 20-50% RH 22-28C (72-82F). >8 hours @ 50-70% RH 22-28C (72-82F). Cleaning: Clean using isopropyl alcohol (IPA). Storage and Handling: Store at 3-25C (37-77F). Do not freeze. Allow 4 hours for thermoset chip glue to reach an operating temperature of 20-25C (68-77F) before use. Transportation: This product has no shipping restrictions. Shipping below 0C (32F) or above 25C (77F) for normal transit times by ground or air will not impact this product's stated shelf life.
- Thermoset Chip Bonding Epoxy
| UPC | 721718004318 |
|---|---|
| Color | Red |
| Model | AD7-30S |
| Volume | 30 Cubic Centimeters |
| Item Form | Liquid |
| Brand Name | Chip Quik |
| Unit Count | 1.0582 Ounce |
| Item Weight | 30 Grams |
| Part Number | AD7-30S |
| Manufacturer | Chip Quik |
| Material Type | Epoxy |
| Container Type | Syringe |
| Full Cure Time | 2 Minutes |
| Viscosity Level | Medium to High |
| Number of Pieces | 1 |
| Compatible Material | Fiberglass, Metal, Plastic |
| Included Components | Syringe, Plunger, Dispensing Tips |
| Item Package Quantity | 1 |
| Water Resistance Level | Water Resistant |
| Specific Uses For Product | Bonding Components to Printed Circuit Boards during reflow to allow for secondary inverted reflow |
| Other Special Features of the Product | Heat Resistant |
